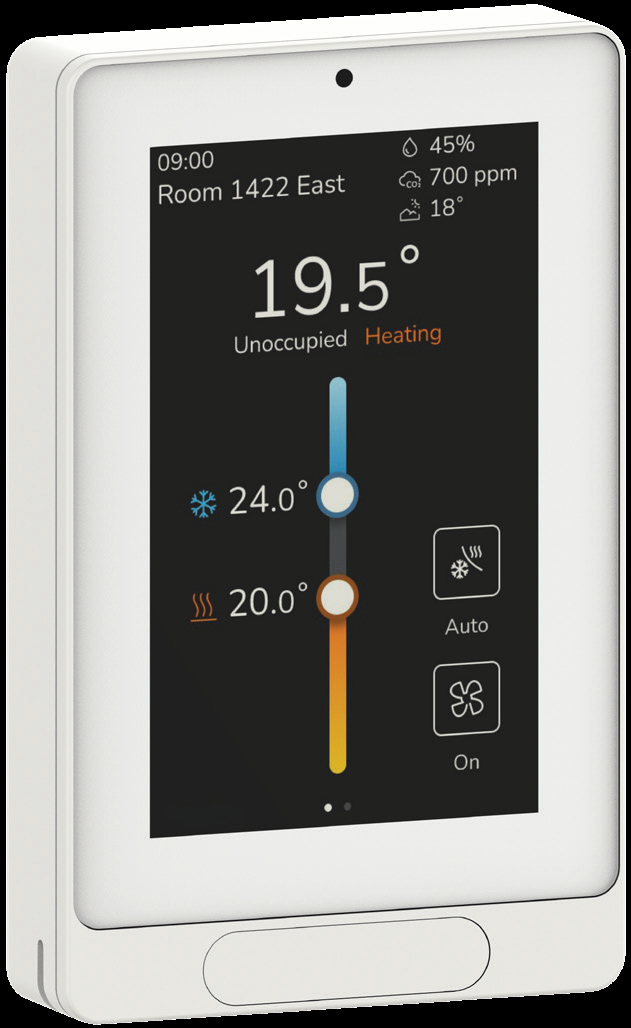

SXWTRC3500B11WA Schneider Electric Thermostat

TRC LV FCU BN RH PIR ZB WIFI NAM WHT Touchscreen Room Controller Low Voltage FCU & Zone: BACnet MSTP, RH sensor, PIR sensor, Zigbee Pro & Wifi NAM,White Product Specifications [Us] rated supply voltage 24 V AC 50/60 Hz /- 15 % 24 V DC /- 15 % Application Low voltage fan coil AWG Gauge AWG 24…AWG 18 Brand Schneider Electric By Schneider Yes Carbon footprint (kg CO2 eq, Total Life cycle) 319 Color Casing White Communication Port Protocol BACnet MS/TP BACnet wireless Modbus RTU Zigbee 3.0 Depth 1.1 in (28 mm) Device Short Name TRC3500 Directives 2014/30/EU – electromagnetic compatibility 2014/35/EU – low voltage directive 2014/53/EU – radio equipment directive Economizer Yes Final Result for Connectable Connectable ready Final Result for Flywheel performance tracking Edge control Function Available Available with CO2/RH/T Brightness sensor Changes can be made directly over display Code lock function Easily configurable Fan control Firmware update by USB HVAC control Global Keywords BACnet MS/TP controller Built-in PIR sensor Commercial/Hotel Room controller Fan Coil Unit Freely programmable Room Controller High resolution colored screen SpaceLogic Touchscreen Controller Wifi Controller Zigbee Controller Height 4.7 in (120 mm) Humidity Control Yes Humidity Measurement Drift Less Than 1 % Yearly Humidity Setting Range 30…95 % Indivisible Sale Qty 1 Input Type Universal input 8 Input Voltage 0…10 V DC Manufacturer Schneider Electric Market Segment Buildings Healthcare Lodging/Hotel Non-critical buildings Office Residential School Small commercial Measurement Accuracy Humidity /- 10 %, 10…20 % non-condensing) Humidity /- 10 %, 80…90 % non-condensing) Humidity /- 5 %, 20…80 % RH non-condensing) Temperature /- 0.5 °C, Network Frequency 50 Hz 60 Hz Output Current 0.3 A universal output 1 A relay output 1.5 A universal output inrush) 3 A relay output inrush) Output Type 4 xuniversal output 5 xrelay output Output Voltage 0…10 V DC analog output 24 V AC relay output Packaging made with recycled cardboard No Packaging without single use plastic No PIR Cover Yes Pollution Degree 2 Product Name Touchscreen Room Controller Product Or Component Type Room controller Product Weight 12.0 oz (340 g) Range SpaceLogic Touchscreen Room Controller Relative Humidity 0…95 % Sales Unit PCE Scheduling Yes SCIP Number Cbbd084a-a79a-4197-bc75-282a397dd209 Sensor Type 10 kOhm T2 NTC thermistor Temperature Bulk polymer Humidity PIR Space RH sensor Humidity Standards EN/IEC 60730-1 ETSI EN 300 328 ETSI EN 301 489-1:v1.9.2 ETSI EN 301 489-17:v2.2.1, 2012 FCC part 15 subpart B FCC part 15 subpart C ICES-003 UL 60730-2-9 Surface Finish Matte Take-back No Temperature Ambient Operating Range 32…122 °F (0…50 °C) Temperature Resolution 0.1 °C Temperature Setting Range 40…90 °F (4.5…32 °C) heating 54…100 °F (12…37.5 °C) cooling Temperature Shipping and Storage Range -22…122 °F (-30…50 °C) Width 3.2 in (81 mm)
