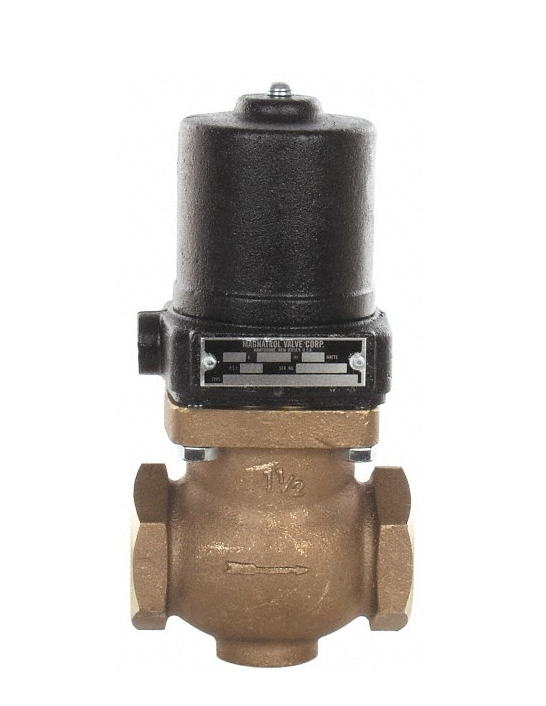

35A46 Magnatrol Solenoid Valve (G35A46SC-ACBW)

35A46 Magnatrol Solenoid Valve (G35A46SC-ACBW) 1.5″npt NC 120V 115# 212F LIQ Overview The Magnatrol Solenoid Valve Model 35A46 (G35A46SC-ACBW) is a two-way, full port, bronze solenoid valve. It is a normally closed (N/C) valve, meaning it opens when the electrical coil is energized (energize-to-open) and closes when power is de-energized. This valve utilizes an internal pilot-operated mechanism where the valve can operate from zero to its maximum differential pressure, requiring no pressure differential to open. Its packless design ensures reliable and consistent service in fluid control systems. Features Operation: Normally Closed (N/C) – opens upon coil energization. Construction: Cast Bronze body with Globe Pattern. The valve features a full port, straight-thru design for flow. End Connections: 1-1/2 inch NPT (National Pipe Thread) connections. Sealing: Standard orifice seal material is Buna-N. Coil: Continuous Duty, encapsulated Class B or Class H coil available. Installation: Requires mounting in a horizontal pipe with the solenoid enclosure positioned vertically on top. Specifications Part Number: 35A46 or G35A46SC-ACBW Pipe Size: 1-1/2″ NPT Type: Type “A” Bronze Solenoid Valve Maximum Differential Pressure (Max Diff PSI): 115 PSI Control Voltage (Standard AC): 120 VAC, 50/60 HZ Power Rating: 45 Watts AC Maximum Fluid Temperature: 212° F (for liquid) Body Material: Bronze Flow Coefficient (Cv Factor): 25.0000 Applications This solenoid valve is a high-quality component used to precisely control the flow of general service fluids in various systems. It is suitable for fluids including Water, Oil, Air, Gas, Solvents, Brine, and Vacuum, provided they are not reactive with the bronze construction materials and are free of sediment. It is a general-purpose valve often used in HVAC, process control, water treatment, chemical processing, and other general industrial sectors.
