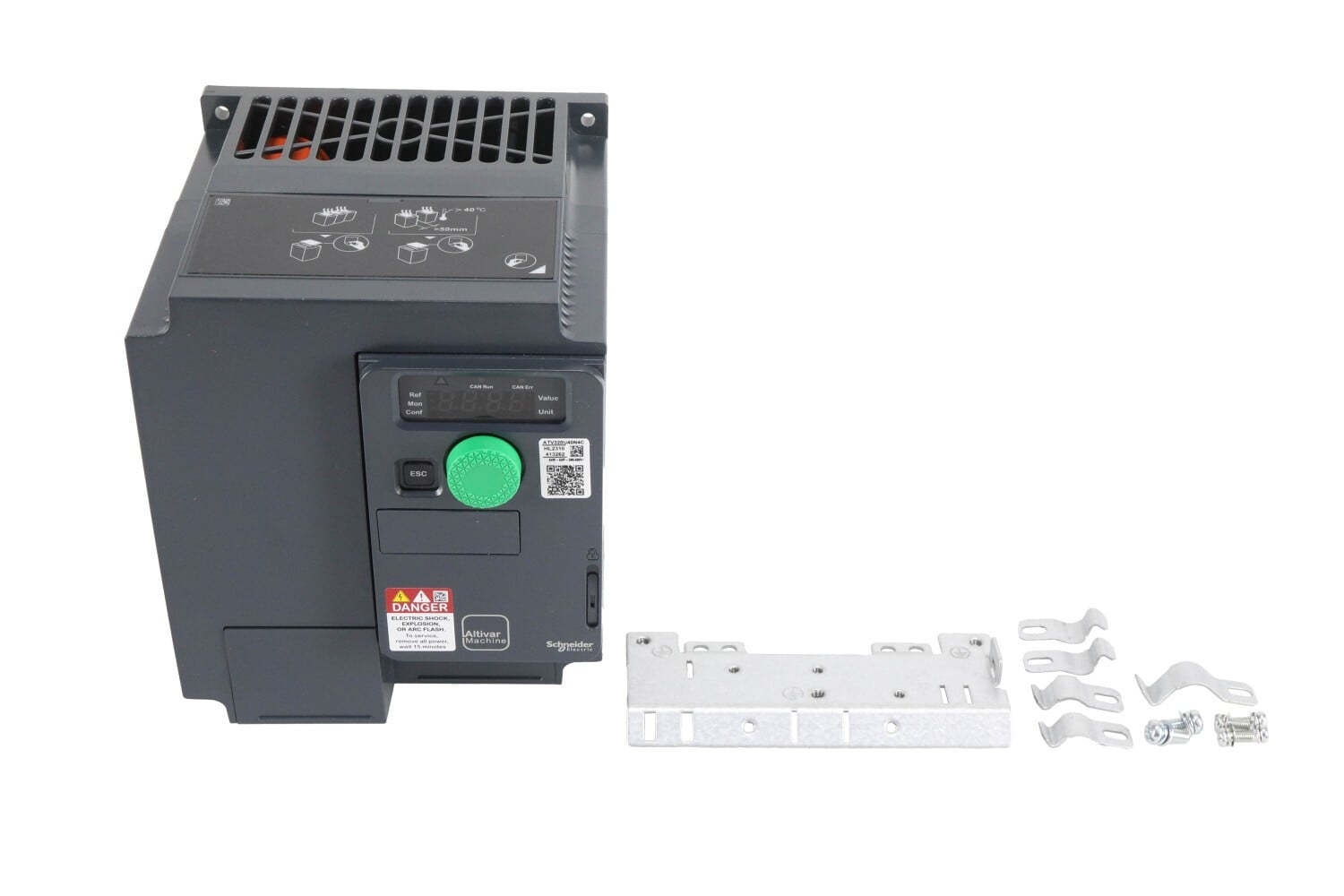

ATV320U40N4C Schneider Electric Variable Frequency Drive

ATV320U40N4C Schneider Electric Variable Frequency Drive ATV320 COMPACT 4KW – 3PH – 380 – 500V ATV320 Variable speed drive, 4 kW, 380…500 V, 3 phases, compact Product Specifications [Us] rated supply voltage 380…500 V 380…500 V – 15…10 % 1 phase low current possible No 4 quadrant operation possible Yes acceleration and deceleration ramps Acceleration/deceleration automatic stop with DC injection Acceleration/deceleration ramp adaptation CUS Linear Ramp switching S U Accuracy /- 0.5 % AI1, AI2, AI3 for a temperature of 25 °C analog input /- 0.7 % AI1, AI2, AI3 for a temperature of -10…60 °C analog input /- 1 % AQ1 for a temperature of 25 °C analog output /- 2 % AQ1 for a temperature of -10…60 °C analog output Ambient Air Temperature For Operation 122…140 °F (50…60 °C) with derating factor 14…122 °F (-10…50 °C) without derating ambient air transport temperature -13…158 °F (-25…70 °C) Analogue Input Number 3 Analogue Input Type AI1 voltage 0…10 V DC 30 kOhm 10 bits AI2 bipolar differential voltage /- 10 V DC 30 kOhm 10 bits AI3 current 0…20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits Analogue Output Number 1 Analogue Output Type Software-configurable current AQ1 0…20 mA 800 Ohm 10 bits Software-configurable voltage AQ1 0…10 V DC 470 Ohm 10 bits apparent power 9.2 kVA 500 V heavy duty) application in domestic and commercial area permit No application in industrial area permitted Yes asynchronous motor control profile Flux vector control without sensor – Energy Saving Flux vector control without sensor, standard Voltage/frequency ratio – Energy Saving, quadratic U/f Voltage/frequency ratio, 2 points Voltage/frequency ratio, 5 points base load current at high overload 9.5 A brake chopper integrated Yes braking to standstill By DC injection Brand Schneider Electric By Schneider Yes California proposition 65  WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov capacity of DC link 550 µF Carbon footprint (kg CO2 eq, Total Life cycle) 2476 Communication Port Protocol CANopen Modbus serial computer port Yes Depth 6.2 in (158.0 mm) design of frequency changer U converter Discrete Input Logic Negative logic (sink) Positive logic (source) Discrete Input Number 7 Discrete Input Type DI1…DI6 logic inputs, 24 V DC 30 V) DI5 programmable as pulse input 0…30 kHz, 24 V DC 30 V) STO safe torque off, 24 V DC1.5 kOhm Discrete Output Number 3 Discrete Output Type Open collector DQ- 0…1 kHz 30 V DC 100 mA Open collector DQ 0…1 kHz 30 V DC 100 mA Electromagnetic Compatibility 1.2/50 µs – 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 EMC filter Class C2 EMC filter integrated EMC limit value (complied) Yes encoder protocol RS 422 environmental class (during operation) Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3 environmental class (during storage) Class 1C3 according to EN 60721-3 Class 1S2 according to EN 60721-3 environmental class (during transport) Class 2C3 according to EN 60721-3 Class 2S1 according to EN 60721-3 Final Result for Connectable Connectable ready Final Result for Flywheel performance tracking Connectable products format of the drive Compact Global Keywords 3-phase Advanced machines Altivar Machine ATV320 Analog input Analog output Asynchronous motors Atv320 CANopen Compact control block Digital input Digital output GDL IE2 motor IE3 motor Inverter LED 7-segment display Logic input Logic output Modbus Modbus SL Motor monitoring functions Motor protection functions Multi-application PM motor Programmable Safety functions Schneider electric SLS Small power motors SMS SS1 STO Synchronous motors Three phase U/f control Variable speed drive Variable speed drive Vector control Vfd Vsd Height 7.2 in (184.0 mm) housing material Plastic IP Degree of Protection IP20 line current 10.6 A 500 V heavy duty) 13.7 A 380 V heavy duty) linearity error AI1, AI2, AI3 /- 0.2…0.5 % of maximum value analog input AQ1 /- 0.3 % analog output Manufacturer Schneider Electric Marking ATEX CE CSA EAC RCM UL maximum acceleration under shock impact (during op 150 m/s² at 11 ms maximum acceleration under shock load (during stor 150 m/s² at 11 ms maximum acceleration under shock load (during tran 150 m/s² at 11 ms maximum acceleration under vibrational stress (dur 10 m/s² at 13…200 Hz maximum acceleration under vibratory load (during 10 m/s² at 13…200 Hz 10 m/s² at 13…200 Hz maximum associated fuse rating 25.0 A maximum deflection under vibratory load (during op 1.5 mm at 2…13 Hz maximum deflection under vibratory load (during st 3.5 mm at 2…13 Hz maximum deflection under vibratory load (during tr 3.5 mm at 2…13 Hz Maximum Input Current per phase 13.7 A maximum output frequency 0.599 kHz maximum output voltage 500 V Maximum Switching Current Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC method of access Slave CANopen minimum switching current Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC motor power kW 4.0 kW heavy duty motor slip compensation Adjustable 0…300 % Automatic whatever the load Not available in voltage/frequency ratio (2 or 5 points) Mounting Mode Wall mount NEMA Protection Rating NEMA 1 Net Weight 4.9 lb(US) (2.2 kg) Network Frequency 50-60 Hz nominal output current 9.5 A Nominal Output Power 4.0 kW nominal switching frequency 4 kHz number of HW interfaces industrial Ethernet 0.0 number of HW interfaces other 1.0 number of HW interfaces parallel 0.0 number of HW interfaces PROFINET 0.0 number of HW interfaces serial RS232 0.0 number of HW interfaces serial RS422 0.0 number of HW interfaces serial RS485 1.0 number of HW interfaces serial TTY 0.0 number of HW interfaces USB 0.0 number of input phases 3 number of inputs, bidirectional, not potential-fre 0 number of inputs, potential-free 0 number of output phases 3 Number of Units in Package 2 12 operating element present Yes operating position Vertical /- 10 degree optical interface present No option card communication module, CANopen communication module, DeviceNet communication module, EtherCAT communication module, Ethernet Powerlink communication module, EtherNet/IP communication module, Profibus DP V1 communication module, Profinet Overvoltage Category III Package 2 GTIN 73606480966780 Package 2 Height 29.53 in (75.000 cm) Package 2 Length 31.50 in (80.000 cm) Package 2 Weight 102.550 lb(US) (46.516 kg) Package 2 width 23.62 in (60.000 cm) Packaging made with recycled cardboard Yes Packaging without single use plastic Yes permitted relative humidity (during operation) Class 3K5 according to EN 60721-3 permitted relative humidity (during storage) Class 1K5 according to EN 60721-3 permitted relative humidity (during transport) Class 2K5 according to EN 60721-3 Phase 3 phase Pollution Degree 2 power dissipation in W Fan 111 W 380 V 4 kHz power loss per device current dependent 111 W power loss static current independent 111 W Product Certifications ATEX CE EAC GOST KC NOM RCM Product contributes to saved and avoided emissions Yes Product Or Component Type Variable speed drive Product Specific Application Complex machines prospective line Isc 5 kA Protection Type Input phase breaks drive Overcurrent between output phases and earth drive Overheating protection drive Short-circuit between motor phases drive Thermal protection drive refresh time Logic input DI1…DI4)8 ms Relay output R1A, R1B, R1C)2 ms Relay output R2A, R2C)2 ms Regulation Loop Adjustable PID regulator relative symmetric mains voltage tolerance 10 % relative symmetric network frequency tolerance 5 % relay output type Configurable relay logic R1A 1 NO 100000 cycles Configurable relay logic R1B 1 NC 100000 cycles Configurable relay logic R1C Configurable relay logic R2A 1 NO 100000 cycles Configurable relay logic R2C sampling duration 2 ms AI1, AI2, AI3) – analog input 2 ms AQ1) – analog output SCIP Number 6bbbffbe-8a69-47e2-9c29-bc773d0b789b speed accuracy /- 10 % of nominal slip 0.2 Tn to Tn Standards IEC 61800-5-1 supporting protocol for ASI No supporting protocol for AS-Interface Safety at Wor No supporting protocol for BACnet No supporting protocol for CAN Yes supporting protocol for Data-Highway No supporting protocol for DeviceNet Yes supporting protocol for DeviceNet Safety No supporting protocol for EtherNet/IP Yes supporting protocol for Foundation Fieldbus No supporting protocol for INTERBUS No supporting protocol for INTERBUS-Safety No supporting protocol for KNX No supporting protocol for LON No supporting protocol for MODBUS Yes supporting protocol for other bus systems Yes supporting protocol for PROFIBUS Yes supporting protocol for PROFINET CBA No supporting protocol for PROFINET IO Yes supporting protocol for PROFIsafe No supporting protocol for SafetyBUS P No supporting protocol for SERCOS No supporting protocol for SUCONET No supporting protocol for TCP/IP Yes Switching Frequency 2…16 kHz adjustable 4…16 kHz with derating factor synchronous motor control profile Vector control without sensor Take-back No Temperature Ambient Operating Range 14…140 °F (-10…60 °C) Temperature Shipping and Storage Range -13…158 °F (-25…70 °C) transient overtorque 170…200 % of nominal motor torque Unit Type of Package 2 S06 UNSPSC Classification v19 39122001 UNSPSC Classification v23 39122001 variant Standard version volume of cooling air 9959.5 Gal/hr(US) (37.7 m3/h) Volume of Package 2 360000.000 cm3 Width 5.5 in (140 mm) with safety function Safe brake management (SBC/SB No with safety function Safe Direction (SDI) No with safety function Safe Operating Stop (SOS) No with safety function Safe Position (SP) No with safety function Safe programmable logic No with safety function Safe Speed Monitor (SSM) No with safety function Safe Stop 1 (SS1) Yes with safety function Safe torque off (STO) Yes with safety function Safely Limited Position (SLP) No with safety function Safely Limited Speed (SLS) Yes with sft fct Safe Stop 2 (SS2) No
