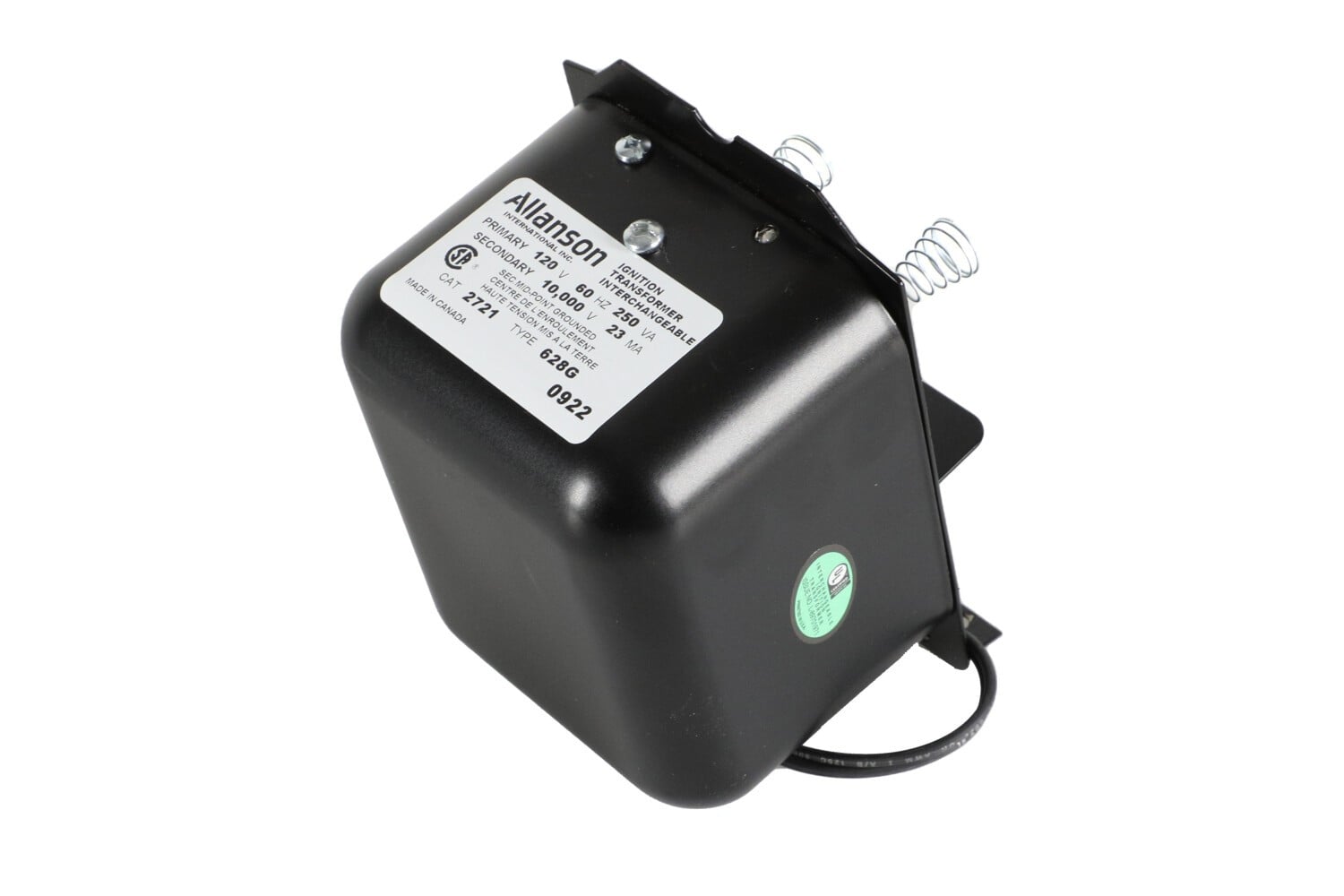

2721-628G Allanson Transformer

2721-628G FERROMAGNETIC IGNITION TRANSFORMER Allanson’s Double Pole ferromagnetic transformers are designed for constant duty and provide the most reliable ignition source for commercial, residential and industrial oil applications. Features: Designed with high temperature wire Runs cooler, quieter and safer on all types of burners. Designed to burner manufacturer?s specifications Meets American and European noise emission standards offering superior EMI and RFI protection. Single porcelain designs Dependable Power Application OIL Burner Manufacturer BECKETT Burner Type A, AF, AFG Input Voltage. 120V Current 23mA Grounding Mid Point Ground Secondary Voltage 10000V Input Frequency 60Hz Can Size Small Can Series Hv Terminal Large Spring Contact Hinge Location End Hinge Poles Double
