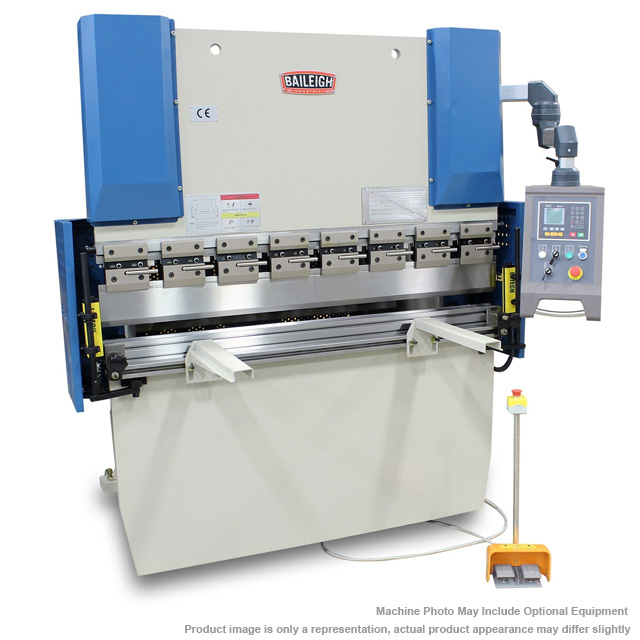

BAILEIGH BP-3305CNC 33 Ton x 5 ft CNC Press Brake

Description Need high production in a limited space? This CNC hydraulic press brake offers programmable controls, top-quality components, and heavy steel construction for an unbeatable price. BP-3305CNC delivers 33 tons of pressure across its 63” table. Runs on 220-volt 3-phase power. Easy-to-use programmable 2-axis Estun E21 controller is integrated right from the factory. Internal memory can hold 40 programs, each with its own unique number for easy identification. Controller will keep a piece count for large production runs. Made with NOK, Siemens, and Omron components. Foot pedal lets you control all bending functions, whether on full auto or jog mode. Fully welded steel plate frame minimizes deflection and maintains rigidity. Gooseneck punch and a 4 sided multi-V bottom die come standard. Integrated safety light curtains help prevent accidents. Covered by a 1-year parts warranty. Includes lifetime technical support by phone. SPECIFICATIONS: Table Size: 63″ x 7″ Programming: 40 Programs/ 25 Steps per Program Back Gauge Length: 21.5″ Return Speed: 3.3″ / sec. Pressure: 33 Tons Included Tooling: 78° Gooseneck & Multi-Vee Die (5/16″, .39″, .47″, 5/8″, .94″, 1-1/4″, 2″) Throat Depth: 8″ Stroke Distance: 3.15″ Approach Speed: 3.5″ / sec Back Gauge Motor: 1/2 HP Bending Speed: .394″ / sec. Main Motor: 4 HP Distance Between Housings: 51.25″ Distance From Table To Ram: 13.325″ Power: 220V / 3-phase Shipping Dimensions (L/W/H): 91″ x 56″ x 87″ Shipping weight: 5,050 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
